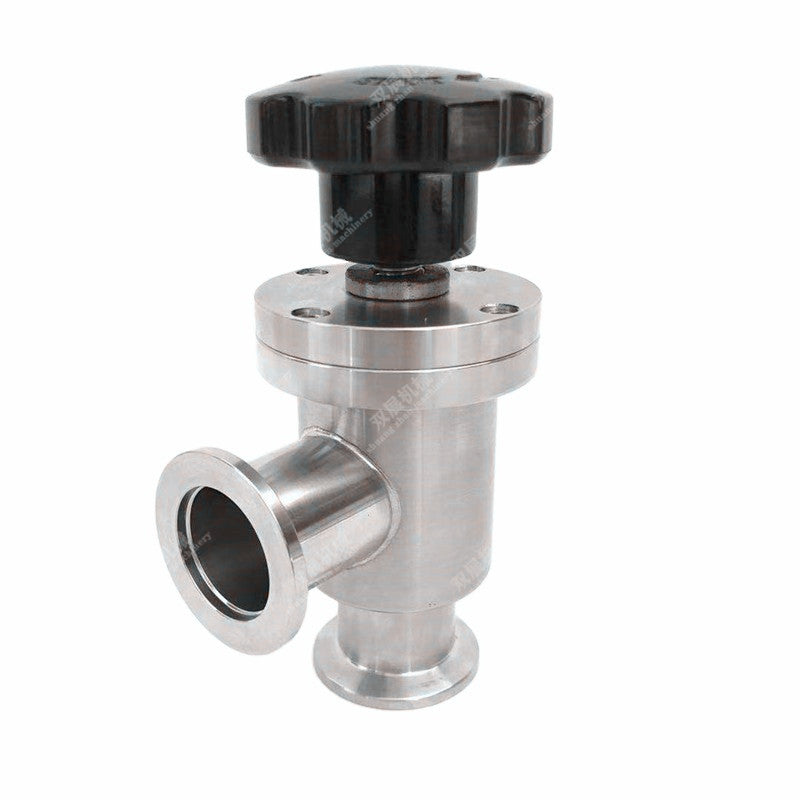

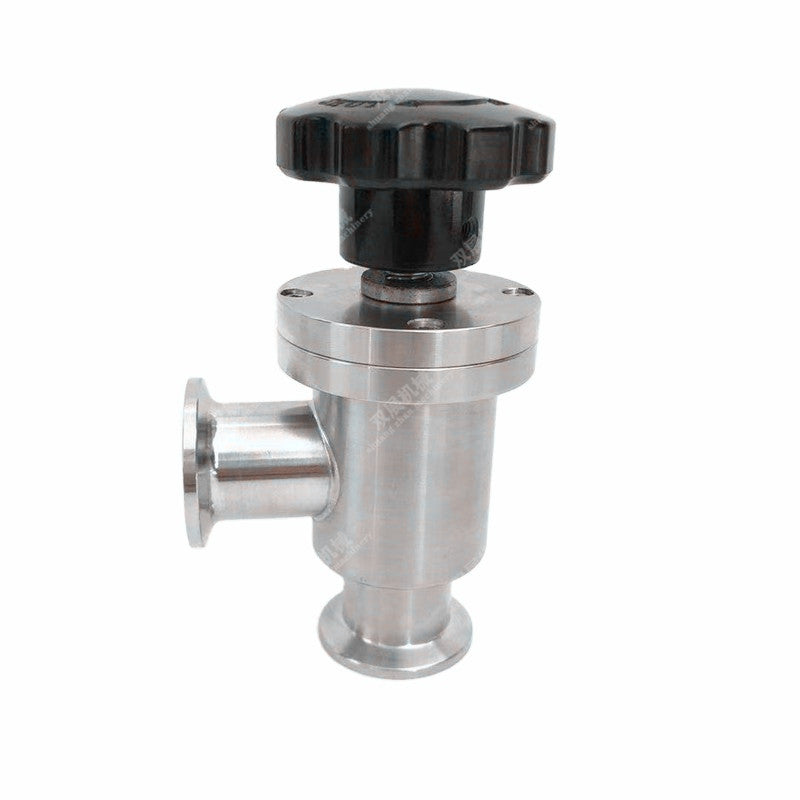

Stainless Steel 304 Manual Bellows Valve with 90° Right Angle Vacuum KF Flange
The Vacuum KF Flange 90° Right Angle HV Manual Bellows Valve is engineered for high-vacuum applications, crafted from durable Stainless Steel 304 for excellent corrosion resistance and longevity. This valve features a unique 90° right angle design, allowing for efficient flow direction changes while minimizing pressure loss. The manual operation ensures precise control, making it ideal for laboratory and industrial settings where reliability is paramount. The bellows mechanism offers enhanced sealing capability, preventing leaks and maintaining optimal vacuum conditions. With standard KF flange connections, this valve is easy to integrate into existing vacuum systems. Its robust construction and reliable performance make it an essential component for any high-vacuum setup, ensuring safety and efficiency in your operations. Trust in this high-quality valve to deliver superior functionality and long-lasting durability.
Price range: $140.00 through $295.00
Guaranteed Safe Checkout
Product Description
- Right Angle Valve is constructed from premium grade 304 Stainless Steel. It contains Viton Seals for extended usage.
- Standard NW-KF flange connections.
Frequently asked questions
FAQ about Vacuum KF Flange 90° Right Angle HV Manual Bellows Valve Stainless Steel 304
Q1: What is a Vacuum KF Flange 90° Right Angle HV Manual Bellows Valve?
A: The Vacuum KF Flange 90° Right Angle HV Manual Bellows Valve is a specialized valve designed for high vacuum applications. It features a 90-degree right-angle design that allows for space-efficient installation in vacuum systems, with a KF flange connection for easy attachment to other components.
Q2: What material is the valve made from?
A: This valve is constructed from high-quality Stainless Steel 304, which offers excellent resistance to corrosion and maintains its integrity in high-temperature environments, making it suitable for a range of vacuum applications.
Q3: What is the purpose of the bellows in the valve?
A: The bellows in the valve provide flexibility and act as a seal to prevent any leaks in the vacuum system. They allow for manual operation of the valve while accommodating movements or thermal expansion without compromising the integrity of the seal.
Q4: How do I operate the HV manual bellows valve?
A: The HV manual bellows valve is operated manually by turning a handle or a knob, which opens or closes the valve in order to control the flow of gas or vacuum through the system. Ensure that you operate it gently to avoid damaging the bellows.
Q5: What are the typical applications for this type of valve?
A: This valve is commonly used in laboratory settings, vacuum processing systems, semiconductor manufacturing, and any application requiring precise control over vacuum flow and pressure.
Q6: What is the pressure rating for this valve?
A: The Vacuum KF Flange 90° Right Angle HV Manual Bellows Valve is designed to withstand high vacuum conditions, typically rated for applications down to 10^-7 Torr or lower. Always refer to the manufacturer’s specifications for exact ratings.
Q7: Can this valve be used with gases other than air?
A: Yes, the valve can be used with a variety of gases, including inert gases, corrosive gases, and vapors. However, it is important to consult the manufacturer’s guidelines to ensure compatibility with specific substances.
Q8: How do I maintain this valve?
A: Maintenance for the bellows valve involves regular inspections for wear or damage, cleaning the flanges and sealing surfaces to ensure a proper seal, and ensuring the handle operates smoothly. If any leaks are detected or if the valve is difficult to operate, it may need replacement.
Q9: Where can I purchase the Vacuum KF Flange 90° Right Angle HV Manual Bellows Valve?
A: This valve can be purchased from specialized industrial suppliers, laboratory equipment retailers, or online marketplaces that sell vacuum components and fittings. Be sure to check for reputable sellers.
Q10: Is technical support available in case of issues with the valve?
A: Most manufacturers and retailers provide technical support for their products. You can typically find contact details for customer service or support on the manufacturer’s website or the retailer’s product page.
Where will the shipment be dispatched from, and how long will it take to receive the goods?
We are a stainless steel valve and pipe fitting manufacturer based in China. Shipments from Wenzhou, China to the United States typically take about one week. We ship via air freight, usually through FedEx or USPS, directly to your address.
Can I become a dealer?
We warmly welcome you to become our distributor. As a distributor, you will enjoy greater pricing advantages. Please contact our sales team at info@ace-chn.com.
What is the minimum order quantity?
We ship starting from 1 piece. We support drop shipping for Amazon, Walmart, AliExpress, eBay, and other online platforms.
Can you customize the pipe opening size and material?
We support customization for any size and provide OEM/ODM services.
