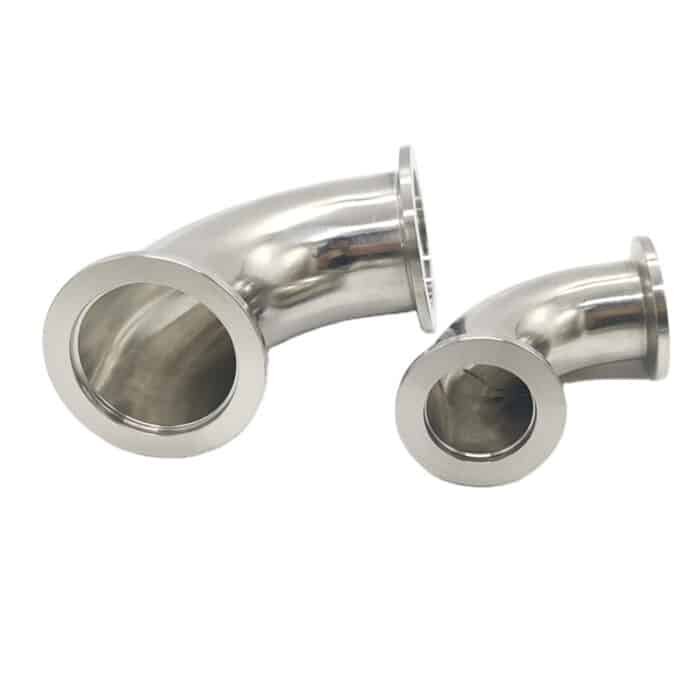

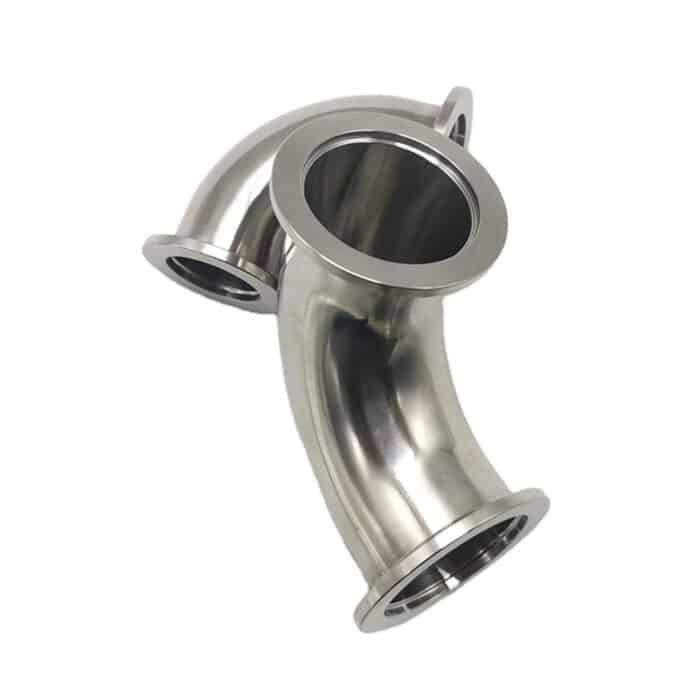

90-Degree Elbow Stainless Steel ISO-KF Flange for Vacuum Piping Systems
The Stainless Steel ISO-KF Flange 90 Degree Elbow is an essential component for vacuum systems, designed to provide seamless connectivity and flexibility in piping arrangements. Constructed from high-quality stainless steel, this elbow ensures durability and corrosion resistance, making it ideal for demanding applications in laboratories and industrial settings. With its ISO-KF flange connection, this fitting allows for easy assembly and disassembly, facilitating quick maintenance and modifications to your vacuum setup. The 90-degree angle enables efficient routing of vacuum lines, minimizing turbulence and enhancing overall system performance. Whether you are setting up a new vacuum system or upgrading existing components, this stainless steel elbow delivers reliability and precision. Perfect for a range of applications, including research, manufacturing, and more, this vacuum pipe fitting is a must-have for professionals seeking top-tier quality and performance. Optimize your vacuum system today with the Stainless Steel ISO-KF Flange 90 Degree Elbow!
Price range: $19.99 through $82.99
Guaranteed Safe Checkout
Product Description
Tips:
- we accept customized.
- please contact me before order if you need KF63 to KF630.

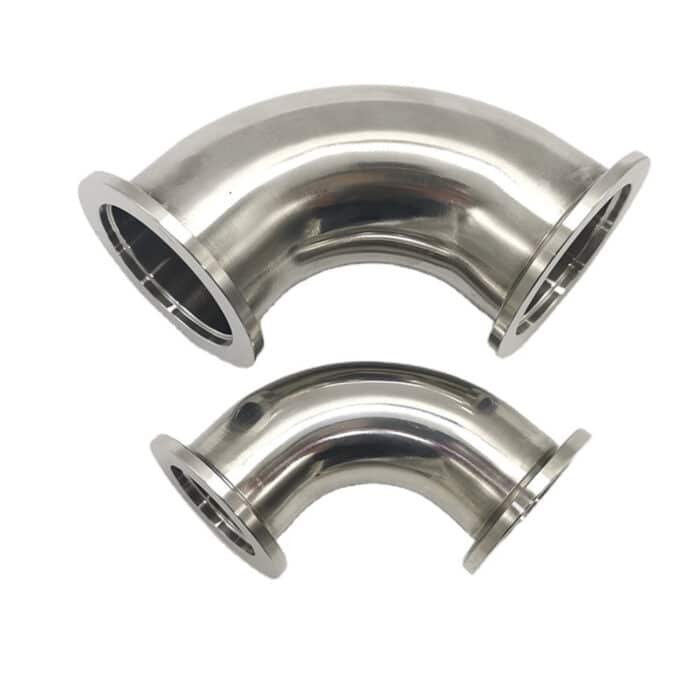

- the picture means we do different size only, the price is for one piece elbow, not for two.
Specs:
- SS 304 stainless steel material,corrosion resistant
- polish inside and outside.
- fits standard NW-KF vacuum pipe fittings.
- These elbows are used to make a right angle change of direction between two ISO-KF flange faces.
- All elbow piece for vacuum pipe fitting follows ISO-KF (NW-KF) standards. Used with a clamp and centering ring to get a strong and durable seal with no leaking.
Frequently asked questions
Frequently Asked Questions about Stainless Steel ISO-KF Flange 90 Degree Elbow for Vacuum Pipe Fitting
1. What is a Stainless Steel ISO-KF Flange 90 Degree Elbow?
A Stainless Steel ISO-KF Flange 90 Degree Elbow is a piping component used in vacuum systems. It allows the change of direction of the pipe at a 90-degree angle while ensuring a secure connection to other ISO-KF fittings through its flange design.
2. What materials are used in the construction of this elbow?
This elbow is made from high-quality stainless steel, which provides excellent corrosion resistance, durability, and hygiene properties, making it suitable for vacuum applications.
3. What is the purpose of the ISO-KF design?
The ISO-KF (Klein Flanschen) design facilitates the quick and easy assembly and disassembly of vacuum components without the need for extensive tools, ensuring a leak-tight seal when connecting to other ISO-KF components.
4. What are the typical applications for this elbow fitting?
Common applications include use in vacuum systems in laboratories, semiconductor manufacturing, and industries requiring vacuum technology, such as aerospace or food processing.
5. Can this elbow fitting handle high vacuum levels?
Yes, the Stainless Steel ISO-KF Flange 90 Degree Elbow is designed to handle high vacuum levels, making it suitable for demanding vacuum environments.

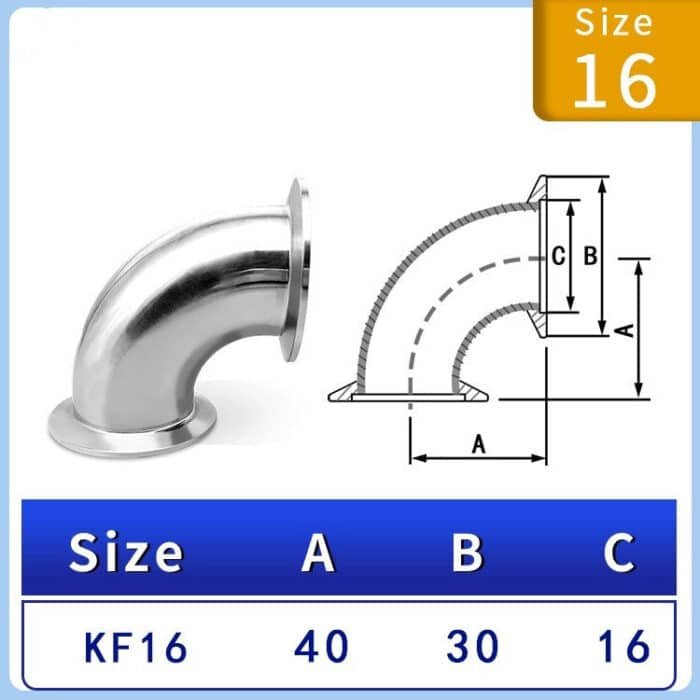

6. What sizes are available for this elbow fitting?
This fitting typically comes in various sizes to accommodate different pipe diameters. It’s essential to check the specifications to select the appropriate size for your application.
7. How is this elbow fitting installed?
The installation involves securing the elbow to existing ISO-KF flanges using a clamp and rubber O-ring for sealing. The assembly should be easy to disassemble if necessary, in line with the ISO-KF design principles.
8. Is this fitting suitable for high-temperature applications?
While stainless steel offers good thermal resistance, the suitability for high-temperature applications depends on the specific conditions. Always refer to the manufacturer’s specifications for limits on temperature and pressure.
9. Where can I purchase a Stainless Steel ISO-KF Flange 90 Degree Elbow?
These fittings can be purchased from industrial supply companies, plumbing suppliers, or specialized vacuum equipment distributors. Online marketplaces also have a variety of suppliers.
10. Do I need any special tools for installation?
No special tools are required for installation, as components can typically be secured using standard hand tools. However, proper torque settings should be followed as per the manufacturer’s guidelines to ensure a leak-proof connection.
Where will the shipment be dispatched from, and how long will it take to receive the goods?
We are a stainless steel valve and pipe fitting manufacturer based in China. Shipments from Wenzhou, China to the United States typically take about one week. We ship via air freight, usually through FedEx or USPS, directly to your address.
Can I become a dealer?
We warmly welcome you to become our distributor. As a distributor, you will enjoy greater pricing advantages. Please contact our sales team at info@ace-chn.com.
What is the minimum order quantity?
We ship starting from 1 piece. We support drop shipping for Amazon, Walmart, AliExpress, eBay, and other online platforms.
Can you customize the pipe opening size and material?
We support customization for any size and provide OEM/ODM services.
