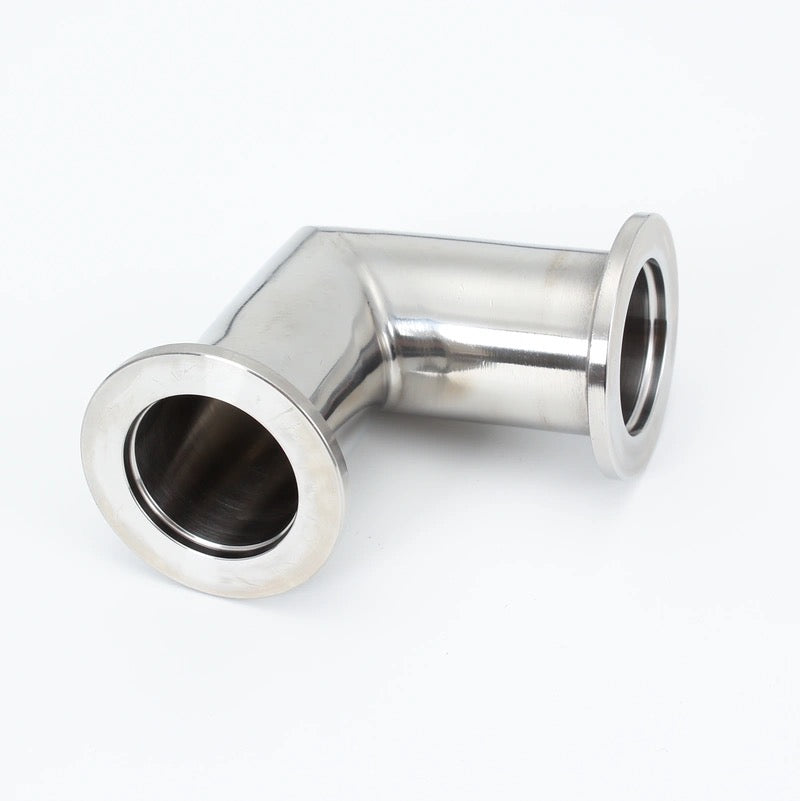

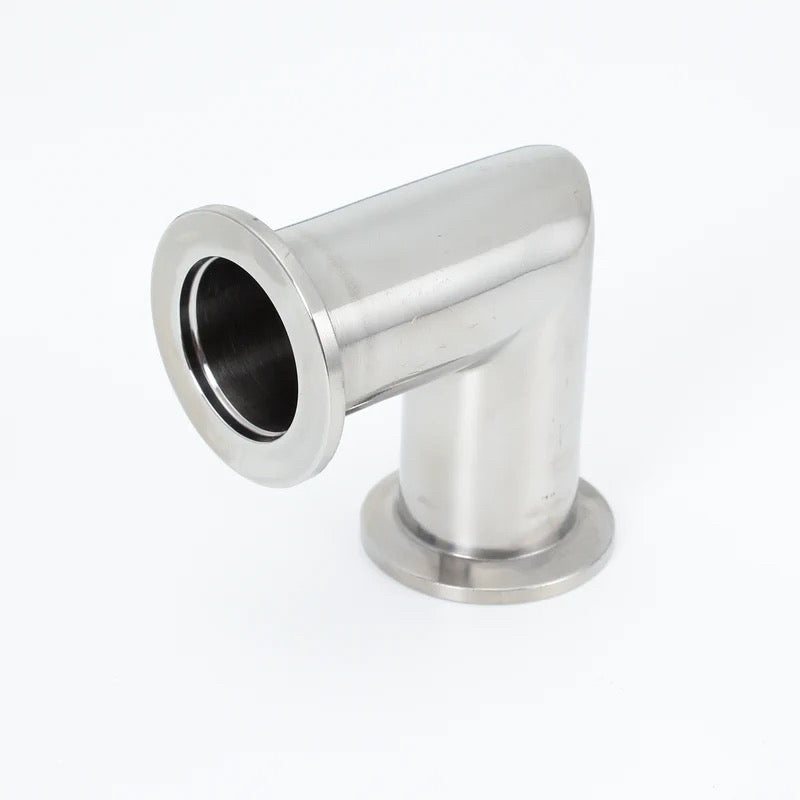

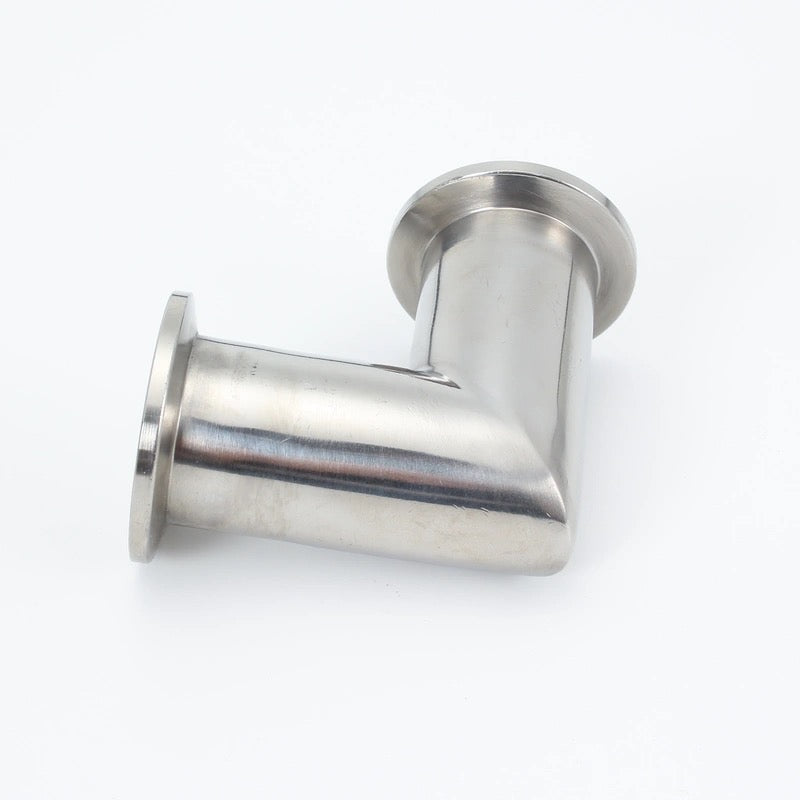

90-Degree Mitered ISO-KF Flange Elbow Vacuum Fittings in Stainless Steel 304
The ISO-KF Flange Elbow Mitered 90 Degrees Vacuum Fitting is expertly crafted from high-quality Stainless Steel 304, ensuring durability and resistance to corrosion in demanding vacuum applications. This reliable fitting allows for secure and efficient fluid or gas transfer, making it an essential component in various industrial systems and laboratories. The mitered design promotes smooth flow while minimizing turbulence, which is crucial for maintaining optimal system performance. Compatible with ISO-KF standards, this elbow fitting ensures easy integration into existing setups, providing a reliable connection between vacuum lines or equipment. With its robust construction and precise engineering, the ISO-KF Flange Elbow is ideal for use in semiconductor manufacturing, pharmaceuticals, and other critical industries requiring high-quality vacuum solutions. Choose this fitting to enhance your system’s efficiency and reliability, ensuring peak performance in all vacuum-related applications.
Price range: $26.00 through $49.00
Guaranteed Safe Checkout
Product Description
Specs:
- SS 304 stainless steel material,corrosion resistant
- polish inside and outside.
- fits standard NW-KF vacuum pipe fittings.
- These elbows are used to make a right angle change of direction between two ISO-KF flange faces.
- All elbow piece for vacuum pipe fitting follows ISO-KF (NW-KF) standards. Used with a clamp and centering ring to get a strong and durable seal with no leaking.
Frequently asked questions
FAQ about ISO-KF Flange Elbow Mitered 90 Degrees Vacuum Fittings Stainless Steel 304
What is the ISO-KF Flange Elbow Mitered 90 Degrees?
The ISO-KF Flange Elbow Mitered 90 Degrees is a specialized vacuum fitting designed to connect two pipes or ducts at a 90-degree angle. The mitered design allows for a smoother transition of airflow compared to standard elbow fittings.
What material is the ISO-KF Flange Elbow made of?
This fitting is constructed from high-quality stainless steel 304, which provides excellent corrosion resistance, structural integrity, and durability in vacuum applications.
What are the typical applications for this fitting?
ISO-KF Flange Elbow Mitered 90 Degrees fittings are commonly used in vacuum systems, laboratory environments, chemical processing, and any application requiring efficient gas or fluid transport at a controlled angle.
What are the advantages of using stainless steel 304 in vacuum fittings?
Stainless steel 304 is known for its resistance to oxidation and corrosion, which makes it suitable for a wide range of temperatures and harsh environments. This ensures longevity and reliability in your vacuum systems.
Can this fitting be used in high-vacuum applications?
Yes, ISO-KF fittings, including the mitered elbow, are designed for high-vacuum applications, providing a reliable and leak-tight connection essential for maintaining system integrity.
What sizes are available for the ISO-KF Flange Elbow Mitered 90 Degrees?
ISO-KF Flange Elbow Mitered 90 Degrees fittings are available in various sizes to accommodate different pipe diameters. It’s essential to choose the correct size for your application to ensure optimal performance.
How do I install the ISO-KF Flange Elbow Mitered 90 Degrees?
Installation is straightforward. Ensure the mating surfaces are clean and undamaged, align the flanges properly, and securely fasten them using the appropriate clamps and bolts that comply with ISO-KF standards.
What is the temperature range for using this fitting?
The ISO-KF Flange Elbow Mitered 90 Degrees can typically withstand a wide range of temperatures, but for specific limits, refer to the manufacturer’s guidelines regarding temperature and pressure compatibility.
How can I ensure the fitting remains leak-proof?
To maintain a leak-proof connection, ensure proper alignment, cleanliness, and the use of compatible vacuum seals or O-rings as necessary. Regular inspections can help identify any wear or degradation in the fitting.
Where can I purchase the ISO-KF Flange Elbow Mitered 90 Degrees?
These fittings can be purchased from specialized suppliers of vacuum equipment, industrial hardware stores, or online retailers that focus on laboratory and industrial components.
Where will the shipment be dispatched from, and how long will it take to receive the goods?
We are a stainless steel valve and pipe fitting manufacturer based in China. Shipments from Wenzhou, China to the United States typically take about one week. We ship via air freight, usually through FedEx or USPS, directly to your address.
Can I become a dealer?
We warmly welcome you to become our distributor. As a distributor, you will enjoy greater pricing advantages. Please contact our sales team at info@ace-chn.com.
What is the minimum order quantity?
We ship starting from 1 piece. We support drop shipping for Amazon, Walmart, AliExpress, eBay, and other online platforms.
Can you customize the pipe opening size and material?
We support customization for any size and provide OEM/ODM services.
