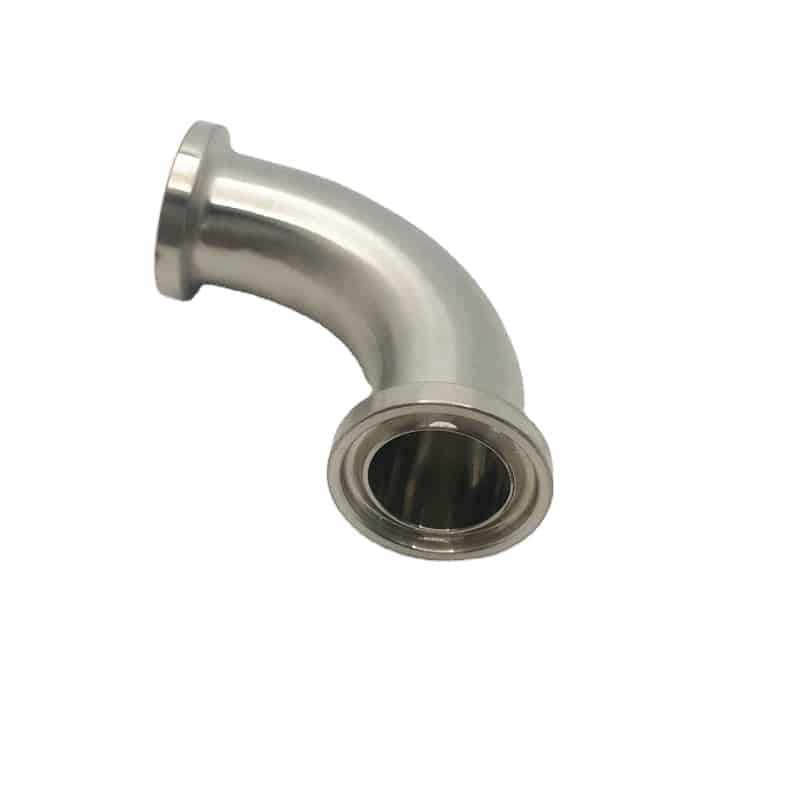

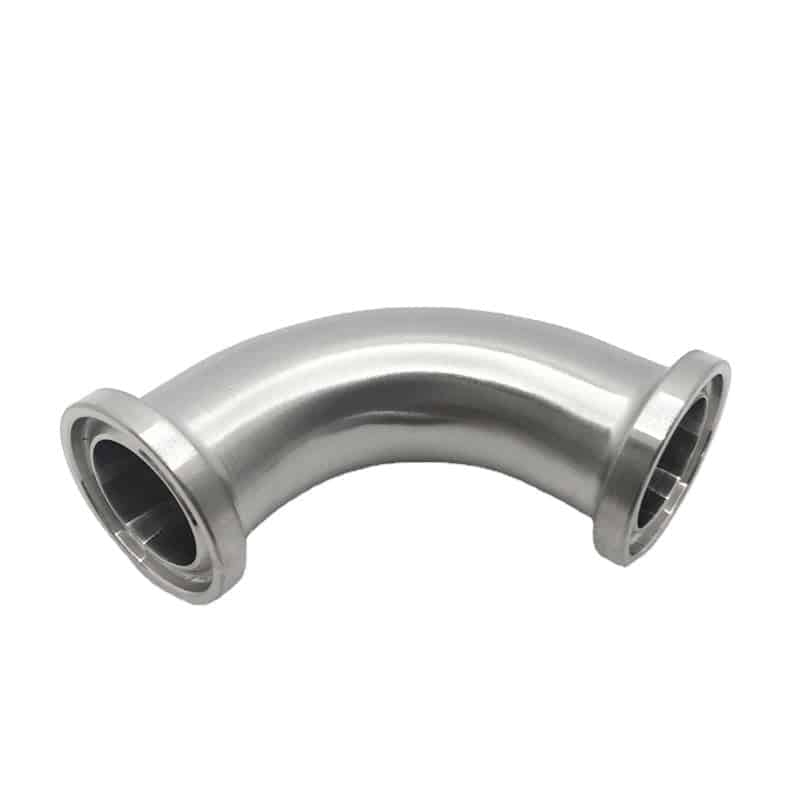

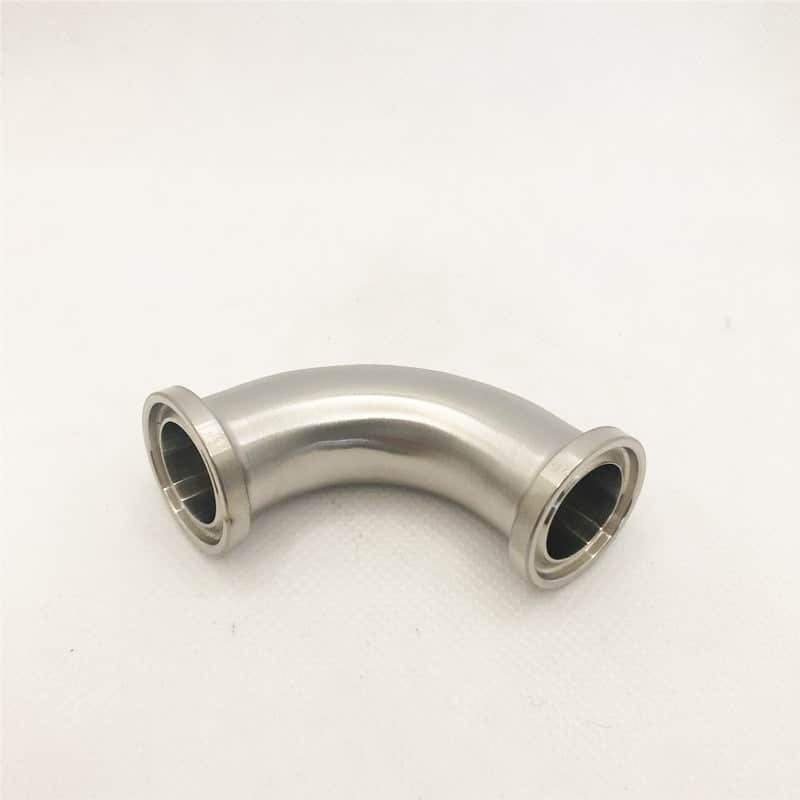

90-Degree 3/4″ Tube OD Elbow with 3/4″ Tri-Clamp Sanitary Pipe Fitting in SS304 or SS316
Discover the perfect solution for your sanitary piping needs with our 90 Degree 3/4″ Tube OD Elbow featuring a 3/4″ Tri Clamp fitting. Crafted from high-quality SS304 or SS316 stainless steel, this elbow is designed for optimal durability and corrosion resistance, making it ideal for both food and beverage applications as well as pharmaceutical processes. The 90-degree turn allows for efficient flow direction changes while maintaining a smooth, sanitary connection. With its tri-clamp design, installation and maintenance are effortless, ensuring secure fittings that meet industry standards. This elbow is a reliable choice for any plumbing system that prioritizes hygiene and performance. Upgrade your setup with our stainless steel elbow fitting and experience enhanced functionality in your piping arrangements. Perfect for both professional and DIY projects, this fitting combines quality and versatility to meet your needs.
$23.99
Guaranteed Safe Checkout
Product Description
- SS304 stainless steel material.
- matt polish outside, mirror polish inside.
- hygienic surface treatment.
Dimensions as below:
- WT:1.65mm
- D1:25.2mm
- D: 19.05mm
- L: 41.3mm
- L1: 53.9mm
Frequently asked questions
FAQ for 90 Degree 3/4″ Tube OD Elbow with 3/4″ Tri Clamp Sanitary Pipe Fitting SS304 or SS316
1. What is the purpose of a 90 Degree 3/4″ Tube OD Elbow?
The 90 Degree 3/4″ Tube OD Elbow is designed to change the direction of pipeline flow by 90 degrees. It is commonly used in sanitary piping systems in industries such as food, beverage, and pharmaceuticals.
2. What materials are available for this fitting?
This elbow fitting is available in two types of stainless steel: SS304 and SS316. SS304 is suitable for general use, while SS316 is recommended for environments that require greater corrosion resistance, particularly in chemical processing applications.
3. What is the significance of the Tri Clamp feature?
The Tri Clamp design allows for easy assembly and disassembly of the piping system. It provides a secure connection that can be quickly released for cleaning or maintenance, making it ideal for sanitary applications.
4. Is this fitting suitable for high-pressure applications?
Yes, the 90 Degree 3/4″ Tube OD Elbow is designed to withstand high pressure, making it suitable for various applications, including those that may involve pressure fluctuations.
5. Can this fitting be used in corrosive environments?
If you opt for the SS316 material, it can be used in corrosive environments. SS316 offers better resistance to corrosion than SS304, especially in the presence of chloride and other harsh chemicals.
6. What is the temperature tolerance of this fitting?
This elbow fitting can typically withstand temperatures ranging from -20°F to 150°F (-29°C to 65°C), depending on the application and medium being transported. Always confirm the specifications based on the manufacturer’s guidelines.
7. Are there any compatibility considerations for this fitting?
The fitting is designed to work with other 3/4″ Tri Clamp connections. Ensure that the components in your system are of the same size and compatible materials for optimal performance.
8. How do I maintain the 90 Degree 3/4″ Tube OD Elbow?
Regular maintenance involves inspecting for leaks or wear, and cleaning the fitting to prevent contamination. It’s essential to follow proper sanitization protocols, especially in food and pharmaceutical applications.
9. Where can I purchase this fitting?
You can purchase the 90 Degree 3/4″ Tube OD Elbow with 3/4″ Tri Clamp from various online industrial suppliers, plumbing supply stores, or specialized stainless steel fitting distributors.
10. What are the dimensions and specifications of the fitting?
The fitting has a 3/4″ outer diameter (OD) and is designed to provide a 90-degree bend for piping installations. For detailed specifications, it is advised to check the product datasheet provided by the manufacturer.
Where will the shipment be dispatched from, and how long will it take to receive the goods?
We are a stainless steel valve and pipe fitting manufacturer based in China. Shipments from Wenzhou, China to the United States typically take about one week. We ship via air freight, usually through FedEx or USPS, directly to your address.
Can I become a dealer?
We warmly welcome you to become our distributor. As a distributor, you will enjoy greater pricing advantages. Please contact our sales team at info@ace-chn.com.
What is the minimum order quantity?
We ship starting from 1 piece. We support drop shipping for Amazon, Walmart, AliExpress, eBay, and other online platforms.
Can you customize the pipe opening size and material?
We support customization for any size and provide OEM/ODM services.
